LED Cabinet, UpadIII 4,8mm, 50x50cm, Outdoor

Optional «add ons» to this items:

Cable, CAT-5 UTP 25 m

Hanging bracket, UpadIII, 1 wide 50cm

Hanging bracket, UpadIII, 2 wide 100cm

Splitt 16 A 3ph Red -> 3 x PowerCon 2m

Splitt 16 A 3ph Red -> 3 x True1 2m

Start Price

78 EUR

Description

UpadIII4.8
Features:
1.One single person can handle all the works from assembly to disassembly to maintenance.

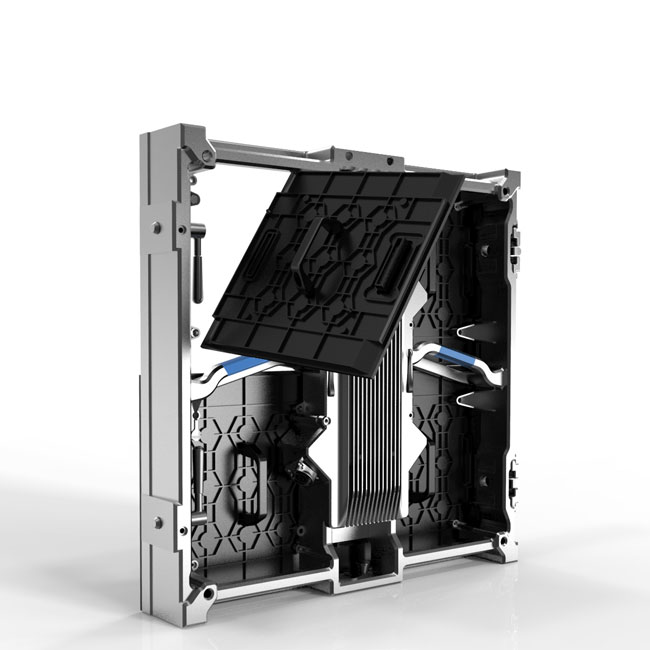

2.Magnetic panel design enables single person assembly and disassembly.

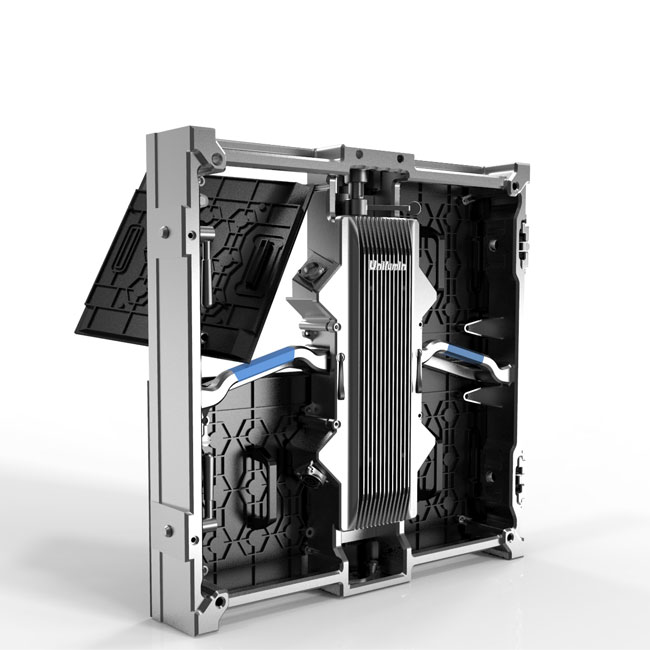

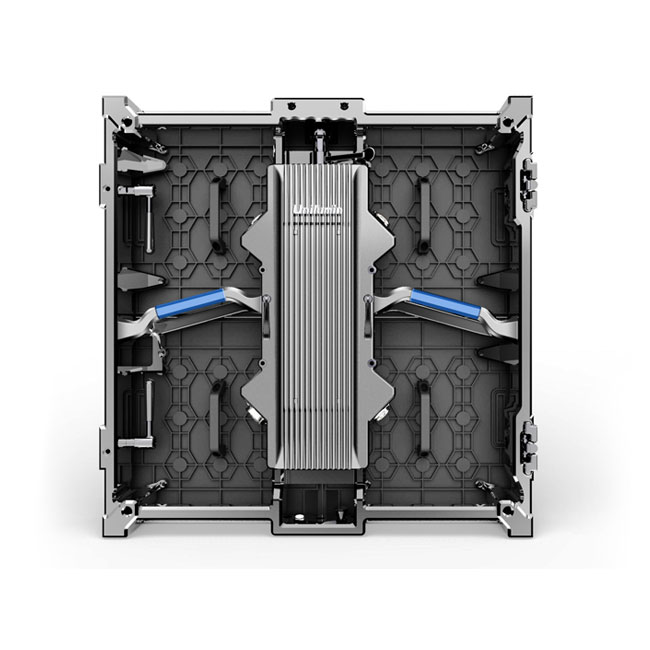

3.Rear-accessible module design is ideal for fast replacement in rental & staging environment.
4.Modular designed power supply and receiving card support quick maintenance.
5.Climbable panel structure is designed for maintenance when hanging installation.

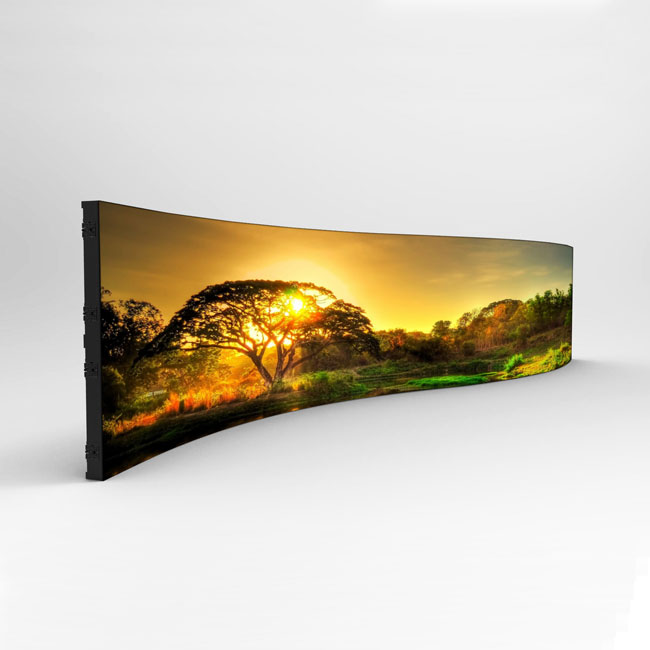

6.Panel supports both concave and convex curve installations.
7.High refresh rate up to 3840 Hz produces stunning image performance.

Pixel Pitch(mm)
4.8
LED Type
3-in-1 Black SMD 2727
Panel Resolution(px)
104×104
Brightness(NITs)
5500
Contrast Ratio
5000:1
Panel Size(W*H*D mm)
500*500*86
Panel Weight(kg)
9.2
IP Level
IP65
Serviceablity
Rear
Refresh Rate(Hz)
2880
Power Consumption Per Panel(ava/max)
76W/230W
