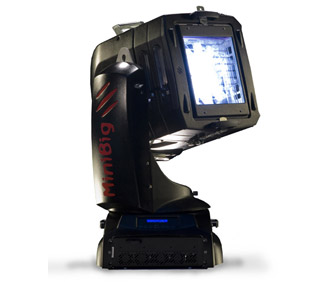

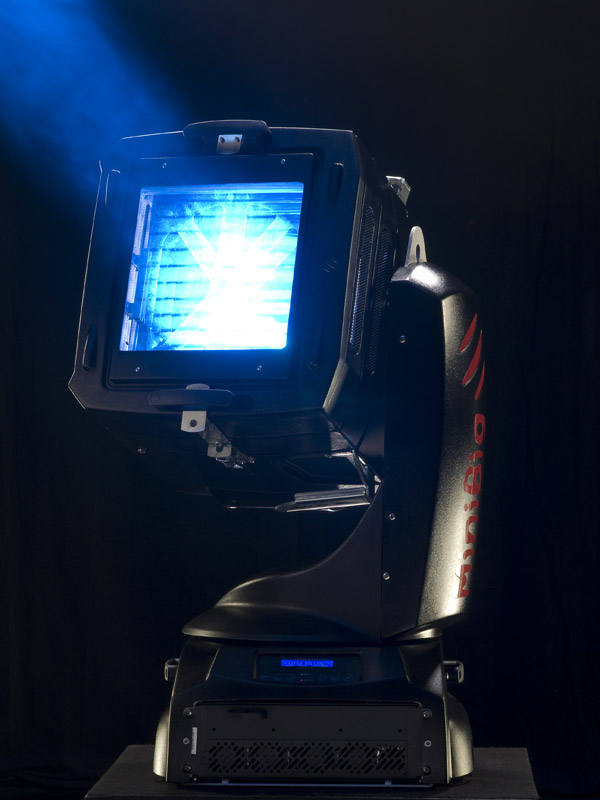

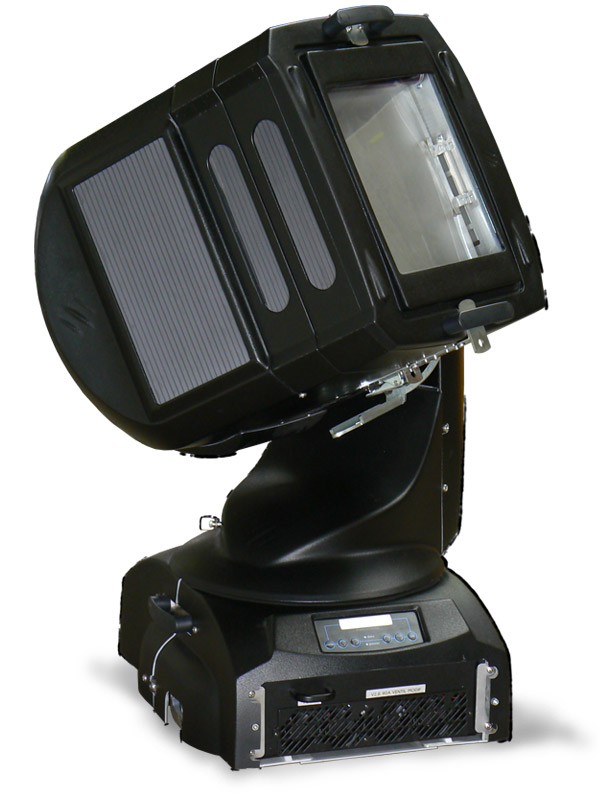

OLD - BigLite Zap Tech MiniBig 3 kW XBO

Description

Technical assistance recommended

Designed for indoor events, the MiniBig Xenon large format won the LDI 2007 Award for Best Debuting Lighting Product because of its compactness and simplicity of use through 10/16A plug, just like any common moving lights.
Thanks to its revolutionary single arm and modular design, the MiniBig has a CMY colour mixing system based on extractible gel scrollers offering hundreds of colours, diffusion, and electronic strobe.
The MiniBig has built-in 16 amps single phase electronic ballast offering 230/208V uses. This ballast module was developed specifically according to Zap modularity philosophy to be easily extracted and replaced. The fixture may travel with its Xenon bulb inside and may be hung under a truss using its integrated foldable clamp.
Protected by a fibre composite shell, the MiniBig is technician friendly with all standard maintenance accomplished through easy access extractible modules.
With only 98 cm high and 85 kg, the MiniBig is the most compact, the most easy to use and the best value for money large format Xenon projector.
Ideal for TV shows and medium size events, it is the first Xenon projector designed for quick plug & play indoor uses.

• Ultra fast Pan and Tilt

• Lamp saving technology

• Hot restrike

• CMY colour mixing system

• Fiber composite shell

• New Osram Xenon short arc bulb

• Cold mirror reflector

• Quiet cooling system

• Fast focus (less than one second per stop-to-stop cycle)

• Remote lamp adjustment (Patent Pending)

• Very lightweight external electronic ballast

• Modular design for easy maintenance

• Easy replacing bulb

• Built-in foldable hanging clamp

• Weather-resistant for outdoor

Pan & Tilt movements:
Steel reinforced belt drive
Linear command - Pan: 540° / Tilt: 250°
DC servo motor 16 Bit
Maximum speeds:
PAN: 5s
TILT: 2.8s

Body:
Aluminium structure
Cover: Fiber composite shell
Color: grey/black
Pan and Tilt Lock for transport and maintenance

Working position:
Any position: upright or truss mounted with EZ-clamp
Hanging system: integrated foldable clamps

Electronic powerfull strobes effects:
Speed,delay, intensity ( made by dimming the lamp from 30% to 100%)

Color Scrollers – CMY mixing:
High speed - DC servo motor
Linear and cut colour modes
Scroller #1:
9 magenta frames (clear + 7 densities + clear)
Scroller #2:
9 cyan frames (clear + 7 densities + clear)
Scroller #3:
9 yellow frames (clear + 7 densities + clear)

Shutter:
High speed - DC servo motor
Mechanical shutter
Fast black out & smooth linear dimming system from 100% to 0%

Focus:
High speed - DC servo motor
Easy access module
Remote adjustable reflector, DMX lamps alignment

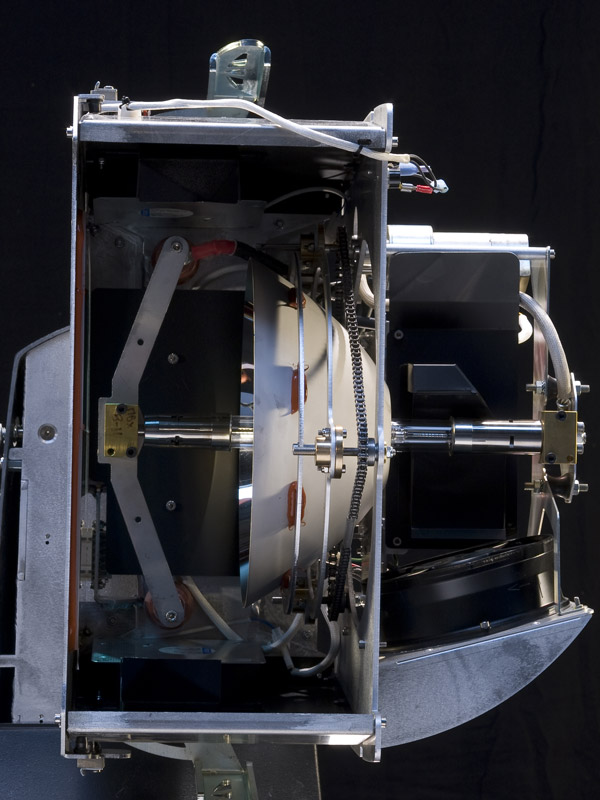

Mobile cold mirror reflector - static bulb
0 - 255 linear command

Buld alignment:
Control panel or DMX lamp adjustment (X & Y)

Power supply:
Europe: 240 VAC@50/60 Hz
US: 208 VAC@50/60 Hz
Operating current (Amps/phases): 16A at 240V

Thermal:
Maximum ambient temperature (Ta max): 45°C (113°F)
Minimum ambient temperature(Ti max): -5°C (23°F)

Dimensions:
H 1063mm x w 627mm x L 665mm
H 41.85" x W 24.7" x L 26.2"

Weight:
96 kg / 212 lbs

Approvals:
CE – CSA – UL listed

Control and programming:
DMX parameters: 13 channels.
DATA: Standart USITT DMX 512 Protocol.
Data input: XLR 5 pins.
Direct display channel control and DMX level monitoring

LittleBig 4.0 DMX Chart:
Channel Parameter
1 -
2 -
3 -
4 -
5 -
6 -
7 -
8 -
9 -
10 -
11 -
12 -
13 -
Pan
Pan low
Tilt
Tilt low
Strobe speed
Strobe delay
Strobe intensity
Functions
Magenta scroller
Cyan scroller
Yellow scroller
Shutter
Focus
