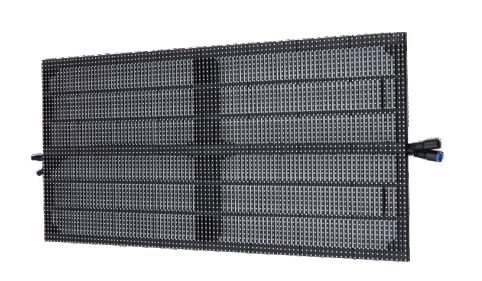

zOLD - LED Cabinet, Glux, 10mm, 50x100cm

Description

BAtn Series

GLUX BAtnC Outdoor Curtain Series

Carbon fiber construction for an ultra light, thin and aerodynamic structure.

Wind resistant and weatherproof - ideal for large scale setups.

Glux angled edge structure for max. 90 degree curved assembly = compatible with

all other Glux LED Screens.

Glux fast-assembly mechanism = compatible with all other Glux LED Screens.

Invisible Cable Management.

Grayscale & pixel by pixel corrections ensures the highest image quality.

Module measurements: 1.0m x 0.5m

Pixel Pitch (mm) 10.4

2 Pixel Density (dots/m ) 9,216

2 Brightness (cd/m ) 5

Color Temperature (after calibration) (K) 6,5

Module Size (W x H x D) (mm) 1000 x 500 x 45

Weight (kg / panel) 4.7

2 Weight (kg / m ) 9.4

LED Type 3535

LED Chip Epistar

Horizontal / Vertical Viewing Angle (°) H160° / V160°

Recommended Viewing Distance (m) 10

Contrast 2,000 : 1

Refresh Rate (Hz) 1,2

Grey Scale (bit) 16

Frame Rate (Hz) 50 / 60

Life time (h) =75,000

Protection IP65

Power Supply Dual Power Supply

2 Max Power Consumption (W/m ) 540

2 Avr Power Consumption (W/m ) 270

Working Temperature -25 - 50?

Working Humidity 10% - 95%

Driving Method 1/3

Driving Chip MBI5041

Cabinet material Carbon fiber

Control Input DVI/HDMI/HDSDI

Certification CE/RoHS/UL/FCC/TUV

Max Hanging (vertical) 1,400kg
