zOLD - Desk, Yamaha Rivage PM7

Description

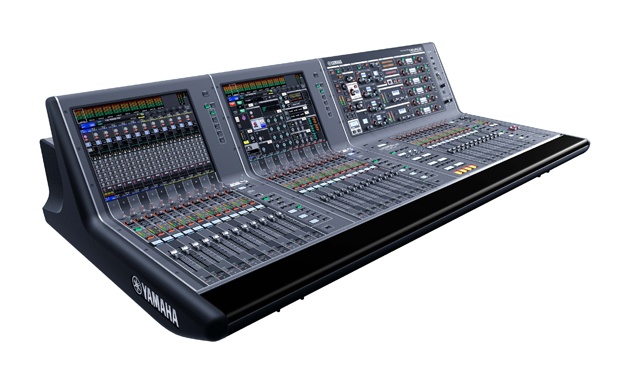

CSD-R7 Control Surface
The CSD-R7 Digital Mixing Console is the core component of any RIVAGE PM7 system, with 96 kHz processing, 120 monaural inputs, and a versatile complement of mixing busses (60 MIX, 24 MATRIX, and 2 STEREO). The console has three 12-faders bays for flexible setup and configuration, and dual power supply units are built in for enhanced reliability.

Display: 15" touch panel x 2
Faders: 38 (12+12+12+2)
Selected Channel section: comprehensive channel parameters
Custom Fader banks: 6 x 2 on each bay
User Defined keys: 12 x 4 banks
User Defined knobs: 4 x 4 banks
Touch and Turn knobs: 2
Analog I/O: 8 in / 8 out
Slot: 3 HY slots, 2 MY slots
AES/EBU: 4 in / 4 out (with SRC)
Ports: GPI (8 in / 8 out), Word Clock In/Out, MIDI In/Out, 5 USB (1 for 2-track recording), Video Out (DVI-D), TC In
Power supply: Dual redundant power supply built-in
Dimensions (WxHxD): 1,549 x 417 x 848mm (61.0" x 16.4" x 33.4")
Net Weight: 94 kg (207 lbs)
