Strobe - Wash, SGM,Q-7, RGBW, DMX5

Description

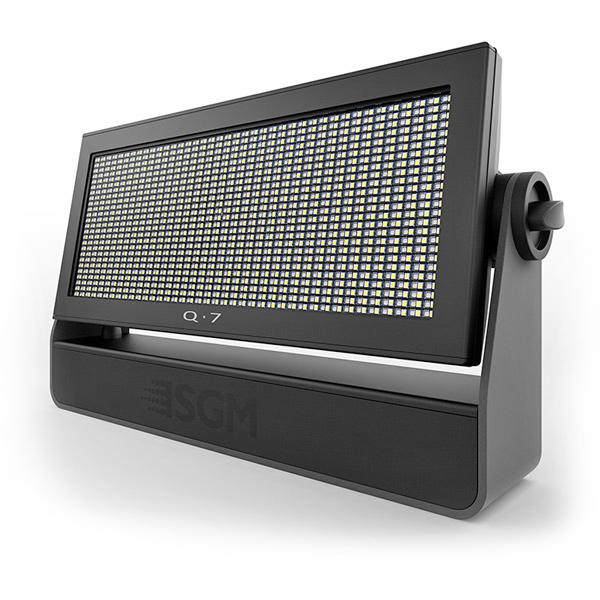

Q-7 is a low-profile and compact RGBW wash, blind and strobe. Containing 2,000 power RGBW LEDs it is a powerful adjustable multi-purpose fixture with a spread angle of 110°. Together with IP65 rating, a high output of 28,000 lumens and having a small physical footprint the Q-7 is an ideal fixture for outdoor use to light up buildings, facades, architectural structures and attractions.

As versatile as it is, the Q-7 is also suitable for indoor applications such as TV studios, theaters and other applications where a flicker-free wide flood of colored light is requested, meanwhile providing the entertainment designs with a flashing bright color strobe effect.

Optics Light source 2,000 x RGBW SMD LEDs (5,700K)
LEDs expected lifetime 50,000 hours*
Lens 110° fixed
Photometric Light output 28,000 lumen (all LEDs on)
3,100 lumen (red)
6,300 lumen (green)
1,500 lumen (blue)
19,000 lumen (white)
Efficacy 60 lm/W
CRI Min. 80
Features Pan/Tilt + / - 90°
Electrical AC Power 208 - 250 V Nominal 50/60 Hz
Maximum power consumption 465 W (all LEDs on)
Typical power consumption 450 W (all LEDs on)
Power factor 0.99 PF (230 V)
Programming and Control Protocol USITT DMX 512 A
Setting and addressing Wireless DMX (LumenRadio)
RDM
Stand alone mode (programmable by RFID)
Oled graphical display / 5 buttons
Software upgradable via Uploader cable (P/N:83062011)
DMX channels 4, 6 or 8
Physical Dimensions (L x H x W) 497 x 268 x 122 mm (19.6 x 10.6 x 4.8 in)
Weight 8.1 kg (17.9 lbs.)
Material Aluminium
Lens Tempered glas front
IP class IP65 (fan module IP55)
Installation Mounting Any, but facing 100% down for permanent installation
Rigging possibilities Stand bracket (included) or hanging (Omera Clamps included)
Safety features Bottom mount for Safety wire
Thermal Temperature range, Operating -10° - 40°C (-14° - 104°F)
Temperature range, Start-up -10° - 40°C (-14° - 104°F)
Humidity (max.) 98%
Cooling Active, Forced air, temperature-regulated, low noise
Connections DMX data in/out IP65 Neutrik HD locking XLR 5-pin cable 0.5m, for DMX in and out
Power Power cable 0.5m with bare ends
