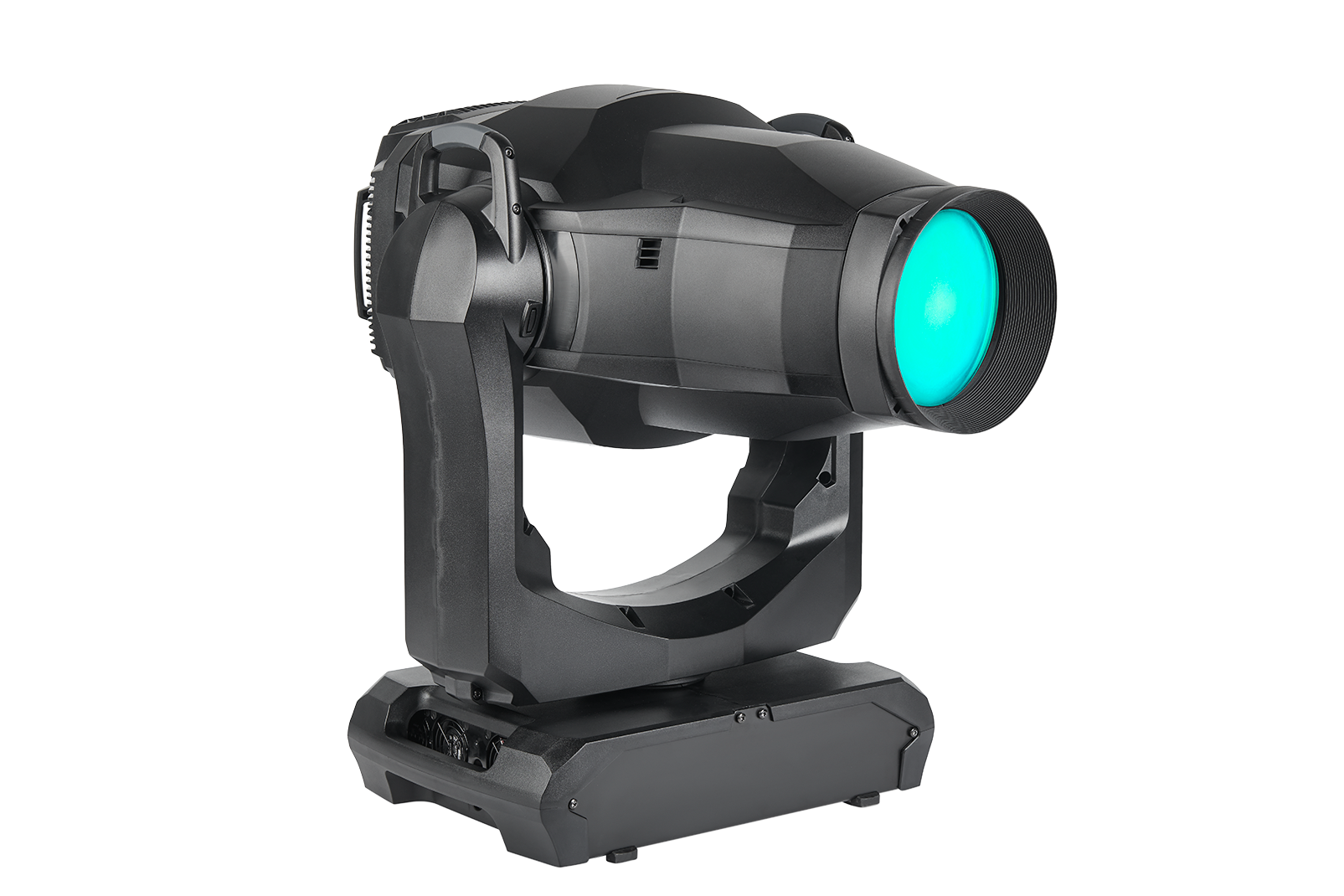

Moving Head, Profile, Martin MAC Ultra Performance

Description

The MAC Ultra Performance has raised the bar for extremely bright moving lights and features benchmark output across the zoom range, a true next generation framing system, higher definition optics and astoundingly low noise levels.

Built to support the biggest live events, this powerful workhorse is based on our all new 1150 W, 5800 K proprietary LED light engine and the fixture pushes an incredible 46,500 lumens in projection. The 50,000+ hour light engine also provides high resolution dimming, strobing and Martin’s unique Animotion™ effect.

A 1:7 zoom-range and precision focus-control is provided from the refined optical system. The extensive feature package includes uniform color mixing, variable CTO, additional color and spectral correction filters, Martin’s innovative Extended Framing system, two layers of rotating gobos, full function animation wheel, iris, frost and prism effects, and truly responsive and accurate pan and tilt. And, these features are all packed into a compact, sturdy and legendary Martin design.

The MAC Ultra Performance is perfect for a wide range of concert and touring productions but is equally applicable for noise-sensitive broadcast and theater stage lighting applications. Simply put, when it comes to workhorse fixtures that push the boundaries of output and performance execution, the MAC Ultra Performance stands boldly in a class all its own.

Physical
Weight: 44.0 kg (97.0 lbs.)
Minimum center-to-center distance in side-by-side installation: 830 mm (32.7 in.)
Length (head): 660 mm (26.0 in.)
Length (base): 468 mm (15.5 in.)
Width (base): 312 mm (12.3 in.)
Width (across yoke): 520 mm (20.5 in.)
Height (head straight up): 864 mm (34.1 in.)
Height (maximum): 876 mm (34.5 in.)
Dynamic Effects
Pre-programmed effects: Two ranges of FX, independent or synchronized/combined
Color mixing: CMY, independently variable 0 - 100%
Color wheel: 6 x interchangeable dichroic filters + open (incl. Spectral Enhancement Filter), indexing, continuous rotation, random color
Gobo animation: Interchangeable animation wheel, indexing, continuous rotation with variable angle, speed and direction
Iris: Variable 0 - 100%, pulse effects
Zoom: Motorized
Color temperature control: Variable 5800 - 2850 K
Framing: Rotatable framing module, +/- 83°, 4 x individually controllable full curtain blades with full variable angle (+/- 30°) through the entire insertion path from 0 - 100%
Prism: 4-facet, indexing and continuous rotation
Frost: Variable 0 - 100%, second (heavy) frost available as optional replacement for Prism
Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
Dimming options: Choice of four dimming curves
Pan: 540°, coarse & fine control and speed
Tilt: 268°, coarse & fine control and speed
P3: Videomapping of fixture color and/or intensity with variable crossfade between DMX control and video control
Focus: Motorized, range varies with zoom angle, from approx. 4.5 m (14.8 ft.) to infinity
Rotating gobo wheel 1: 5 x interchangeable gobos + open, indexing, continuous rotation and shake
Rotating gobo wheel 2: 5 x interchangeable gobos + open, indexing, continuous rotation and shake
Gobo Color Temperature Correction: Automatic
