Extender DVI-Cat6, Kramer, KIT

Description

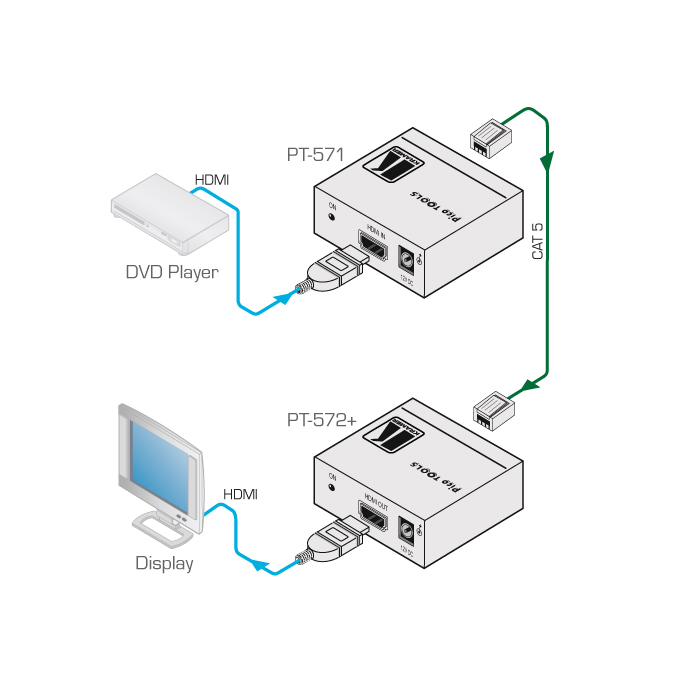

PT-571HDCP
Requires Shielded Twisted Pair Cable
Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel)
HDCP Compliant
Passes EDID
Rack Kit - RK-4PT

INPUTS: 1 DVI, 1.2Vpp on a DVI Molex 24-pin female connector.
OUTPUTS: 1 DGKat twisted pair on an RJ-45 connector.
BANDWIDTH: 4.95Gbps (1.65Gbps per graphic channel); WUXGA, 1920x1080p.
POWER CONSUMPTION: 12V DC, 308mA (transmitter and receiver together).
OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F).
STORAGE TEMPERATURE: -40° to +70°C (-49° to 158°F).
HUMIDITY: 10% to 90%, RHL non-condensing.
DIMENSIONS: 6.2cm x 5.2cm x 2.4cm (2.4" x 2.1" x 1") W, D, H.
WEIGHT: 0.14kg (0.3lbs).

PT-572HDCP+
Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel)
HDCP Compliant
EDID Pass-Thru
Requires STP Cable

INPUTS: 1 DGKat twisted pair on an RJ-45 connector.
OUTPUTS: 1 DVI, 1.2Vpp on a DVI Molex 24-pin female connector, DDC signal 5Vpp (TTL).
BANDWIDTH: 4.95Gbps (1.65Gbps per graphic channel).
POWER CONSUMPTION: 12V DC, 250mA.
DIMENSIONS: 6.2cm x 5.2cm x 2.4cm (2.4" x 2.1" x 1") W, D, H.
WEIGHT: 0.14kg (0.3lbs).
