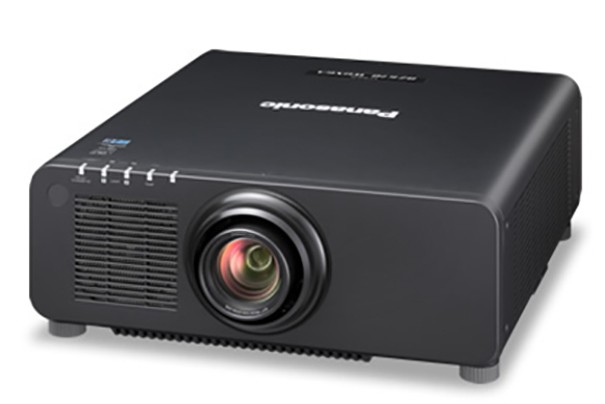

Projector, Panasonic PT-RZ970 WUXGA, 10K Ansi Lm


Optional «add ons» to this items:

Adaptor, Minitele 3,5mm - 2x XLR3 male
Adaptor, Minitele 3,5mm - XLR3 female
Panasonic Lens Zoom, 0.8-1.0:1, ET-DLE080
Panasonic Lens Zoom, 1.3-1.8:1, ET-DLE100
Panasonic Lens Zoom, 1.4-2.0:1, ET-DLE150
Panasonic Lens Zoom, 1.8-2.4:1, ET-DLE170 STD
Panasonic Lens Zoom, 2.4-3.8:1 ET-DLE250
Panasonic Lens Zoom, 2.5-4,1:1 ET-DLE200
Panasonic Lens Zoom, 3,6-4,7:1 ET-DLE310
Panasonic Lens Zoom, 3.8-5.7:1 ET-DLE350
Panasonic Lens Zoom, 5.6-9.0:1 ET-DLE450
Panasonic Lens, 0.8:1 ET-DLE055
Projector clamp, Panasonic 360 for frame, TH-Shorty-60-6
Start Price
904 EUR

Description

Main unit
Power supply AC100 - 240V 10.4-5.0A 50Hz/60Hz
Specications
Power consumption 1,050W
DLP™ Projector PT-RZ970B/RZ970W/RZ970LB/RZ970LW
NORMAL: 742W ECO: 617W LONG LIFE1: 410-588
LONG LIFE 2: 375-588W LONG LIFE 3: 349-588W SHUTTER: 82W
STANDBY MODE [ECO]*1: 0.2W STANDBY MODE [NORMAL]: 3W
STANDBY MODE (When the [QUICK STARTUP] function is enabled): Approx. 85 W
*Operating Temperature: 25 °C (77 °F), Altitude: 700m (2,297 ft),
ICE62087: 2008 Broadcast contents,
Picture mode: Standard, Dynamic Contrast2

LCDpanel Panel size
Display method
Pixels
PT-RZ970B/W
PT-RZ970LB/LW
Powered zoom/focus lenses (1.7–2.4:1), F 1.7–1.9, f 25.6–35.7 mm
Optional powered zoom/focus lenses and ?xed-focus lens
Lens
Brightness*3
Center-to-corner uniformity*3
Contrast*3
Resolution
17.0 mm (0.67 in) diagonal (16:10 aspect ratio)
DLP™ chip × 1, DLP™ system
2,304,000 (1920 × 1200) × 1, total of 1,024,000 pixels
Light source
10,000 lumens (Center)*2/ 9,400 lumens*3
9,400 lumens (Half luminance) (NORMAL)
7,500 lumens (Half luminance) (ECO)
3,700 lumens (Constant luminance) (LONG LIFE1)
3,100 lumens (Constant luminance) (LONG LIFE2)
2,500 lumens (Constant luminance) (LONG LIFE3)
90%
10,000:1 (All White/All Black) (Dynamic Contrast3)
1920 × 1200 pixels
Laser Diode Laser class 1(Class3R for US models)
Luminance life for set: 20,000 hours at half luminance (normal)/
24,000 hours at half luminance (Eco)
* Temperature: 30°C????86°F??, Altitude 700m (2,297 ft), Dust: 0.15mg/m3
Dynamic Contrast3
43,800 hours at constant luminance (LONG LIFE1)
61,320 hours at constant luminance (LONG LIFE2)
87,600 hours at constant luminance (LONG LIFE3)
BTU value Max 3,584 BTU
Screen size 1.27– 15.24 m (50–600 inches) (16:10 aspect ratio)
*1.27 – 5.08 m (50 – 200 inches) with the ET-DLE055 (16:10 aspect ratio)
*2.54 – 7.62 m (100 – 350 inches) with the ET-DLE030 (16:10 aspect ratio)
Scanning frequency SDI 3G-SDI signal (RGB 4:4:4 12-bit/10-bit):
SMPTE ST 424 compliant: 1125(1080)/60i, 1125(1080)/50i,
1125(1080)/25p, 1125(1080)/24p, 1125(1080)/24sF, 1125(1080)/30p,
[2K/24p], [2K/25p], [2K/30p]
3G-SDI signal (YPBPR4:2:2 10-bit):
SMPTE ST 424 compliant: 1125(1080)/60p, 1125(1080)/50p,
[2K/48p], [2K/50p], [2K/60p]
HD-SDI signal (YPBPR4:2:2 10-bit):
SMPTE ST 292 compliant: 750(720)/60p, 750(720)/50p,
1125(1080)/60i, 1125(1080)/50i, 1125(1080)/25p, 1125(1080)/24p,
1125(1080)/24sF, 1125(1080)/30p
SD-SDI signal (YCBCR4:2:2 10-bit):
SMPTE ST 259 compliant: 525i(480i), 625i(576i)
HDMI/DVI-D fH: 15- 100kHz, fV: 24 - 120Hz, dot clock: 25 - 162 MHz
525i (480i)*4, 625i (576i)*4, 525p (480p), 625p (576p), 750 (720)/60p,
750 (720)/50p, 1125 (1080)/60i, 1125 (1080)/50i, 1125 (1080)/25p,
1125 (1080)/24p, 1125 (1080)/24sF, 1125 (1080)/30p, 1125 (1080)/60p,
1125 (1080)/50p, VGA (640 x 480) - WUXGA (1920 x 1200) compatible
with non-interlaced signals only
